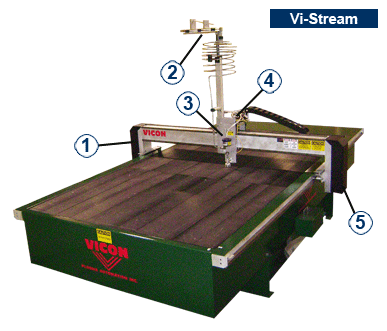

Vi-Stream

2012 - Present

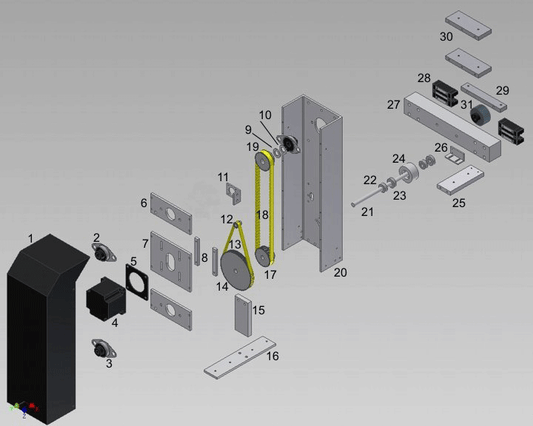

Vi-Stream Gantry Assembly Guide Side

1

Vi-Stream Gantry Assembly Guide Side
Vi-Stream Pivot Assembly

2

Vi-Stream Pivot Assembly

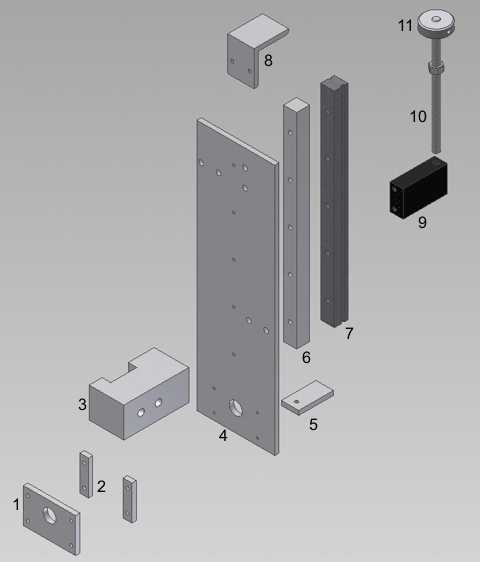

Vi-Stream Lift Assembly

3

Vi-Stream Lift Assembly

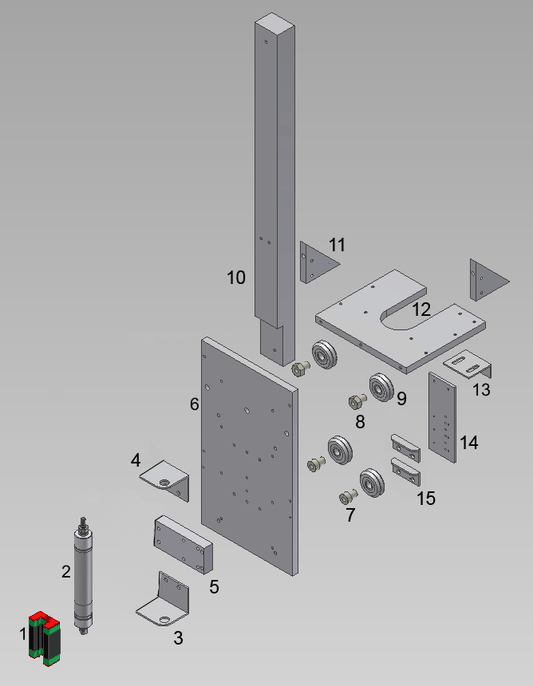

Vi-Stream Carriage Assembly

4

Vi-Stream Carriage Assembly

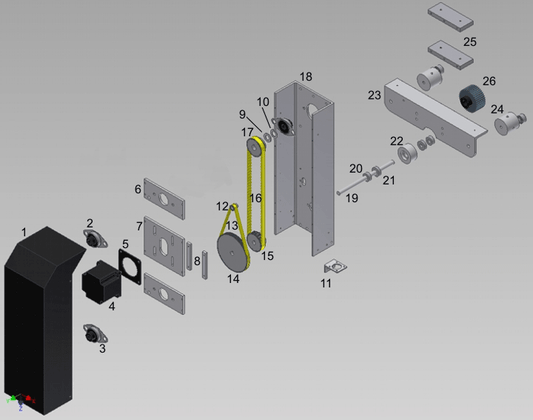

Vi-Stream Gantry Assembly Non-Guide Side

5

Vi-Stream Gantry Assembly Non-Guide Side
