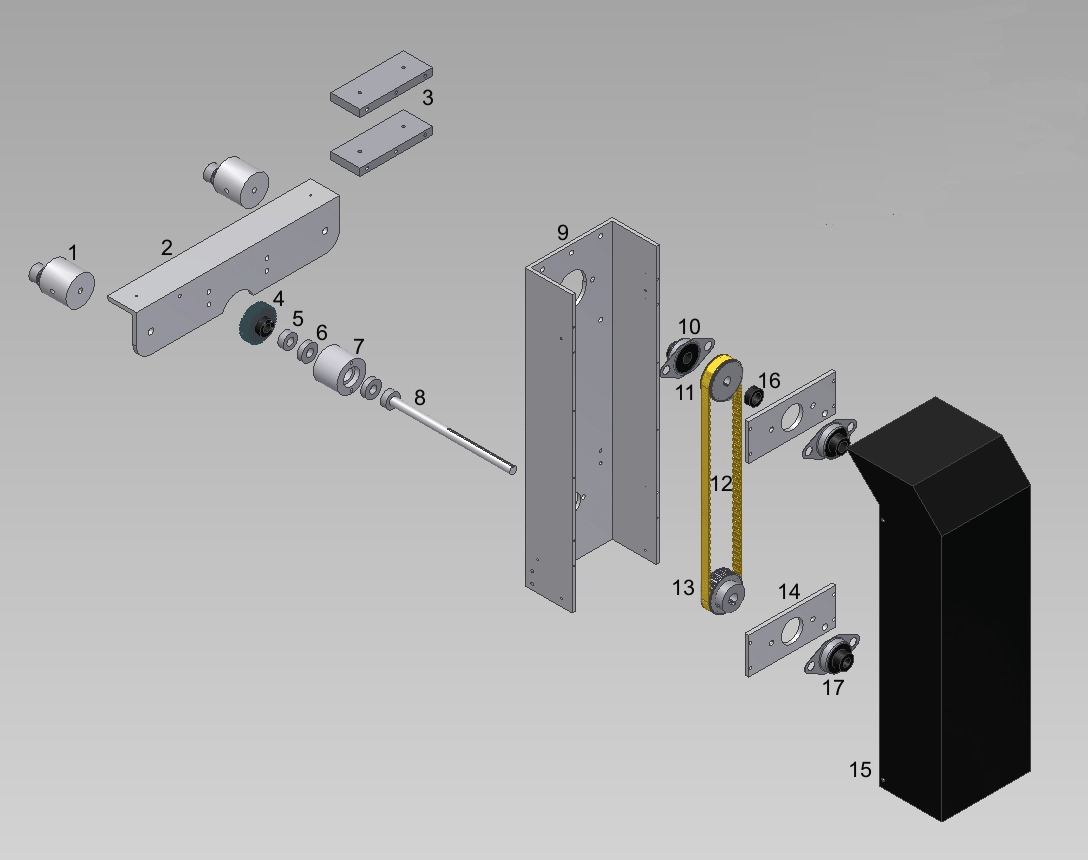

1
|
CR16VA
|
# In Diagram: 1
CR16VA $111.32/ea |
$0.00
|
Cam Follower Assembly
|
| $111.32/ea |
$0.00
|
|
|
|
|
|
2
|
00-0002-B
|
# In Diagram: 2
00-0002-B $92.29/ea |
$0.00
|
Cam Follower Angle
|
| $92.29/ea |
$0.00
|
|
|
|
|
|
3
|
00-0009-A
|
# In Diagram: 3
00-0009-A $52.44/ea |
$0.00
|
Gantry End Channel Mounting Block
|
| $52.44/ea |
$0.00
|
|
|
|
|
|
4
|
2040NS x 1/2-X
|
# In Diagram: 4
2040NS x 1/2-X $185.66/ea |
$0.00
|
40 Tooth 2" pinion 1/2" wide 1/2" bore nyloil Nonshouldered Gear
|
| $185.66/ea |
$0.00
|
|
|
|
|
|
5
|
S25FY9-PC50031
|
# In Diagram: 5
S25FY9-PC50031 $52.58/ea |
$0.00
|
Fairloc Clamp Collar
|
| $52.58/ea |
$0.00
|
|
|
|
|
|
6
|
77R8
|
# In Diagram: 6
77R8 $18.66/ea |
$0.00
|
Lower Drive Shaft Bearing
|
| $18.66/ea |
$0.00
|
|
|
|
|
|
7
|
D-8H-00-002-0300-A
|
# In Diagram: 7
D-8H-00-002-0300-A $53.98/ea |
$0.00
|
Bearing Housing
|
| $53.98/ea |
$0.00
|
|
|
|
|
|
8
|
00-0019-A
|
# In Diagram: 8
00-0019-A $65.98/ea |
$0.00
|
Gantry Lower Drive Shaft
|
| $65.98/ea |
$0.00
|
|
|
|
|
|
9
|
11-0017-C
|
# In Diagram: 9
11-0017-C $215.84/ea |
$0.00
|
Gantry End Channel
|
| $215.84/ea |
$0.00
|
|
|
|
|
|
11
|
6910
|
# In Diagram: 11
6910 $80.30/ea |
$0.00
|
Upper Drive Shaft Nice Bearing
|
| $80.30/ea |
$0.00
|
|
|
|
|
|
11
|
18L050x5/8
|
# In Diagram: 11
18L050x5/8 $70.76/ea |
$0.00
|
Upper Drive Shaft Pulley
|
| $70.76/ea |
$0.00
|
|
|
|
|
|
12
|
322L050K
|
# In Diagram: 12
322L050K $46.73/ea |
$0.00
|
Shaft to Shaft Belt
|
| $46.73/ea |
$0.00
|
|
|
|
|
|
13
|
18L050x1/2
|
# In Diagram: 13
18L050x1/2 $70.76/ea |
$0.00
|
Lower Drive Shaft Pulley,18 Tooth Pulley 1/2" Bore, 1/8"kw, Alum
|
| $70.76/ea |
$0.00
|
|
|
|
|
|
14
|
00-0008-A
|
# In Diagram: 14
00-0008-A $52.44/ea |
$0.00
|
Gantry Bearing Mount
|
| $52.44/ea |
$0.00
|
|
|
|
|
|
15
|
00-0031-C
|
# In Diagram: 15
00-0031-C $220.04/ea |
$0.00
|
X Axis Belt Cover
|
| $220.04/ea |
$0.00
|
|
|
|
|
|
16
|
PA-000050
|
# In Diagram: 16
PA-000050 $20.13/ea |
$0.00
|
5/8 in. Clamp Collar - PN# CL-10-F
|
| $20.13/ea |
$0.00
|
|
|
|
|
|
17
|
6908
|
# In Diagram: 17
6908 $83.05/ea |
$0.00
|
Lower Drive Shaft Bearing
|
| $83.05/ea |
$0.00
|
|
|
|
|
