1
|
D-8H-04-000-0065A-A
|

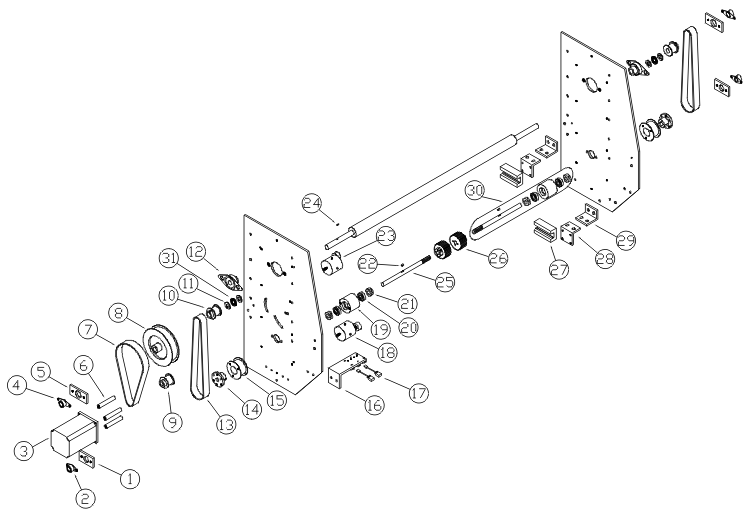

# In Diagram: 1
D-8H-04-000-0065A-A $15.85/ea |
$0.00
|
Lower Drive Shaft End Bushing Backing Plate
|
| $15.85/ea |
$0.00
|
|
|
|
|
|
2
|
SGMAH-08AAF41
|
# In Diagram: 2
SGMAH-08AAF41 $4,191.75/ea |
$0.00
|
X Axis Yaskawa Motor
|
| $4,191.75/ea |
$0.00
|
|
|
|
|
|
3
|
AB-WC-S10-XN
|
# In Diagram: 3
AB-WC-S10-XN $26.19/ea |
$0.00
|
Upper Drive Shaft End Bushing
|
| $26.19/ea |
$0.00
|
|
|
|
|
|
5
|
D-8H-04-000-0064A-A
|
# In Diagram: 5
D-8H-04-000-0064A-A $15.85/ea |
$0.00
|
Upper Drive Shaft End Bushing Backing Plate
|
| $15.85/ea |
$0.00
|
|
|
|
|
|
6
|
D-8H-02-000-0050C-A
|
# In Diagram: 6
D-8H-02-000-0050C-A $22.63/ea |
$0.00
|
X Axis Motor Standoff
|
| $22.63/ea |
$0.00
|
|
|
|
|
|
7
|
225L100K
|
# In Diagram: 7
225L100K $52.76/ea |
$0.00
|
X Axis Motor Belt
|
| $52.76/ea |
$0.00
|
|
|
|
|
|
8
|
40L100 x 5/8
|
# In Diagram: 8
40L100 x 5/8 $184.62/ea |
$0.00
|
Upper Drive Shaft 40 Tooth Pulley
|
| $184.62/ea |
$0.00
|
|
|
|
|
|
9
|
10L100 x 16mm
|
# In Diagram: 9
10L100 x 16mm $46.66/ea |
$0.00
|
Gantry Pulley
|
| $46.66/ea |
$0.00
|
|
|
|
|
|
10
|
10L100 x 5/8
|
# In Diagram: 10
10L100 x 5/8 $46.66/ea |
$0.00
|
Upper Drive Shaft 10 Tooth Pulley
|
| $46.66/ea |
$0.00
|
|
|
|
|
|
11
|
6910
|
# In Diagram: 11
6910 $73.00/ea |
$0.00
|
Upper Drive Shaft Nice Bearing
|
| $73.00/ea |
$0.00
|
|
|
|
|
|
12
|
TRC-1018
|
# In Diagram: 12
TRC-1018 $6.00/ea |
$0.00
|
Thrust Washer
|
| $6.00/ea |
$0.00
|
|
|
|
|
|
13
|
270L100K
|
# In Diagram: 13
270L100K $72.44/ea |
$0.00
|
X Axis Drive Shaft Belt
|
| $72.44/ea |
$0.00
|
|
|
|
|
|
14
|
JA x 1/2
|
# In Diagram: 14
JA x 1/2 $39.09/ea |
$0.00
|
1/2 in. Taper Lock Bushing
|
| $39.09/ea |
$0.00
|
|
|
|
|
|
15
|
18L100JA
|
# In Diagram: 15
18L100JA $39.07/ea |
$0.00
|
Taper Lock Pulley
|
| $39.07/ea |
$0.00
|
|
|
|
|
|
16
|
D-8H-00-010-0707-A
|
# In Diagram: 16
D-8H-00-010-0707-A $64.38/ea |
$0.00
|
X Axis Proxy Mounting Bracket
|
| $64.38/ea |
$0.00
|
|
|
|
|
|
17
|
EZ-18T
|
# In Diagram: 17
EZ-18T $140.00/ea |
$0.00
|
X Axis Proxy Switch
|
| $140.00/ea |
$0.00
|
|
|
|
|
|
18
|
PA-000031
|
# In Diagram: 18
PA-000031 $101.20/ea |
$0.00
|
Cam Follower Assembly - Edge King
|
| $101.20/ea |
$0.00
|
|
|
|
|
|
19
|
PA-000032
|
# In Diagram: 19
PA-000032 $57.56/ea |
$0.00
|
Lower Drive Shaft Bearing Housing - Edge King
|
| $57.56/ea |
$0.00
|
|
|
|
|
|
20
|
77R8
|
# In Diagram: 20
77R8 $16.96/ea |
$0.00
|
Lower Drive Shaft Bearing
|
| $16.96/ea |
$0.00
|
|
|
|
|
|
21
|
S25FY9-PC50031
|
# In Diagram: 21
S25FY9-PC50031 $47.80/ea |
$0.00
|
Fairloc Clamp Collar
|
| $47.80/ea |
$0.00
|
|
|
|
|
|
22
|
69310
|
# In Diagram: 22
69310 $2.00/ea |
$0.00
|
# 3 Woodruff Key
|
| $2.00/ea |
$0.00
|
|
|
|
|
|
24
|
69314
|
# In Diagram: 24
69314 $2.22/ea |
$0.00
|
# 61 Woodruff Key
|
| $2.22/ea |
$0.00
|
|
|
|
|
|
25
|
D-8H-02-000-0055A-A
|
# In Diagram: 25
D-8H-02-000-0055A-A $54.13/ea |
$0.00
|
Lower Drive Shaft
|
| $54.13/ea |
$0.00
|
|
|
|
|
|
26
|
2040 X 1NS
|
# In Diagram: 26
2040 X 1NS $222.32/ea |
$0.00
|
40 Tooth 1" wide 1/2" Bore Gear
|
| $222.32/ea |
$0.00
|
|
|
|
|
|
27
|
HGH20CAZ0C
|
# In Diagram: 27
HGH20CAZ0C $114.00/ea |
$0.00
|
Torch Holder Linear Car
|
| $114.00/ea |
$0.00
|
|
|
|
|
|
28
|
D-8F-00-013-0716-A
|
# In Diagram: 28
D-8F-00-013-0716-A $25.00/ea |
$0.00
|
Gantry Angle Mount
|
| $25.00/ea |
$0.00
|
|
|
|
|
|
29
|
D-8F-00-013-0716-A 2
|
# In Diagram: 29
D-8F-00-013-0716-A 2 $25.00/ea |
$0.00
|
Gantry Angle Mount
|
| $25.00/ea |
$0.00
|
|
|
|
|
|
30
|
PA-000033
|
# In Diagram: 30
PA-000033 $241.21/ea |
$0.00
|
Lower Drive Shaft Assembly - Edge King
|
| $241.21/ea |
$0.00
|
|
|
|
|
|
31
|
TRA-1018
|
# In Diagram: 31
TRA-1018 $2.50/ea |
$0.00
|
Gantry Needle Bearing
|
| $2.50/ea |
$0.00
|
|
|
|
|
