1
|
00-0031-C
|

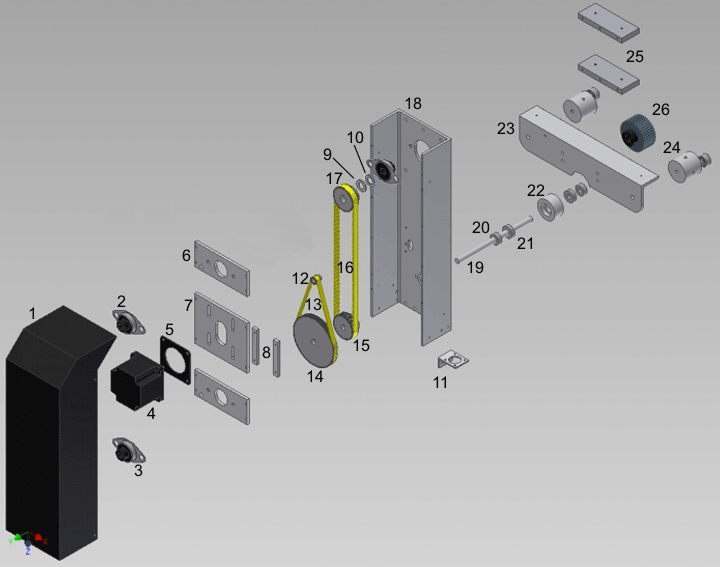

# In Diagram: 1
00-0031-C $200.04/ea |
$0.00
|
X Axis Belt Cover
|
| $200.04/ea |
$0.00
|
|
|
|
|
|
2
|
6910
|
# In Diagram: 2
6910 $73.00/ea |
$0.00
|
Upper Drive Shaft Nice Bearing
|
| $73.00/ea |
$0.00
|
|
|
|
|
|
3
|
6908
|
# In Diagram: 3
6908 $75.50/ea |
$0.00
|
Lower Drive Shaft Bearing
|
| $75.50/ea |
$0.00
|
|
|
|
|
|
4
|
HT34-474-001
|
# In Diagram: 4
HT34-474-001 $491.25/ea |
$0.00
|
Stepper Motor - STEP MTR ASSY
|
| $491.25/ea |
$0.00
|
|
|
|
|
|
5
|
00-1000-A
|
# In Diagram: 5
00-1000-A $37.81/ea |
$0.00
|
Motor Spacer
|
| $37.81/ea |
$0.00
|
|
|
|
|
|
6
|
00-0008-A
|
# In Diagram: 6
00-0008-A $47.67/ea |
$0.00
|
Gantry Bearing Mount
|
| $47.67/ea |
$0.00
|
|
|
|
|
|
7
|
00-0012-A
|
# In Diagram: 7
00-0012-A $70.11/ea |
$0.00
|
X Axis Motor Plate
|
| $70.11/ea |
$0.00
|
|
|
|
|
|
8
|
00-0014-A
|
# In Diagram: 8
00-0014-A $30.83/ea |
$0.00
|
X Axis Motor Backing Nut
|
| $30.83/ea |
$0.00
|
|
|
|
|
|
9
|
TWB-1018
|
# In Diagram: 9
TWB-1018 $7.80/ea |
$0.00
|
Thrust Washer
|
| $7.80/ea |
$0.00
|
|
|
|
|
|
10
|
TRC-1018
|
# In Diagram: 10
TRC-1018 $6.00/ea |
$0.00
|
Thrust Washer
|
| $6.00/ea |
$0.00
|
|
|
|
|
|
11
|
01-0020-A
|
# In Diagram: 11
01-0020-A $29.70/ea |
$0.00
|
X Axis Motor Cable Bracket
|
| $29.70/ea |
$0.00
|
|
|
|
|
|
12
|
10XL037 x 3/8
|
# In Diagram: 12
10XL037 x 3/8 $80.67/ea |
$0.00
|
HVAC Carriage Motor Pulley
|
| $80.67/ea |
$0.00
|
|
|
|
|
|
13
|
210XL037K
|
# In Diagram: 13
210XL037K $21.20/ea |
$0.00
|
Carriage Belt
|
| $21.20/ea |
$0.00
|
|
|
|
|
|
14
|
72XL037 x 5/8
|
# In Diagram: 14
72XL037 x 5/8 $64.11/ea |
$0.00
|
Stand Alone Drive Shaft Pulley
|
| $64.11/ea |
$0.00
|
|
|
|
|
|
15
|
18L050x1/2
|
# In Diagram: 15
18L050x1/2 $64.33/ea |
$0.00
|
Lower Drive Shaft Pulley,18 Tooth Pulley 1/2" Bore, 1/8"kw, Alum
|
| $64.33/ea |
$0.00
|
|
|
|
|
|
16
|
322L050K
|
# In Diagram: 16
322L050K $42.48/ea |
$0.00
|
Shaft to Shaft Belt
|
| $42.48/ea |
$0.00
|
|
|
|
|
|
17
|
18L050x5/8
|
# In Diagram: 17
18L050x5/8 $64.33/ea |
$0.00
|
Upper Drive Shaft Pulley
|
| $64.33/ea |
$0.00
|
|
|
|
|
|
18
|
11-0017-C
|
# In Diagram: 18
11-0017-C $196.22/ea |
$0.00
|
Gantry End Channel
|
| $196.22/ea |
$0.00
|
|
|
|
|
|
19
|
00-0019-A
|
# In Diagram: 19
00-0019-A $59.98/ea |
$0.00
|
Gantry Lower Drive Shaft
|
| $59.98/ea |
$0.00
|
|
|
|
|
|
20
|
S25FY9-PC50031
|
# In Diagram: 20
S25FY9-PC50031 $47.80/ea |
$0.00
|
Fairloc Clamp Collar
|
| $47.80/ea |
$0.00
|
|
|
|
|
|
21
|
77R8
|
# In Diagram: 21
77R8 $16.96/ea |
$0.00
|
Lower Drive Shaft Bearing
|
| $16.96/ea |
$0.00
|
|
|
|
|
|
22
|
D-8H-00-002-0300-A
|
# In Diagram: 22
D-8H-00-002-0300-A $49.07/ea |
$0.00
|
Bearing Housing
|
| $49.07/ea |
$0.00
|
|
|
|
|
|
23
|
00-0002-B
|
# In Diagram: 23
00-0002-B $83.90/ea |
$0.00
|
Cam Follower Angle
|
| $83.90/ea |
$0.00
|
|
|
|
|
|
24
|
CR16VA
|
# In Diagram: 24
CR16VA $101.20/ea |
$0.00
|
Cam Follower Assembly
|
| $101.20/ea |
$0.00
|
|
|
|
|
|
25
|
00-0009-A
|
# In Diagram: 25
00-0009-A $47.67/ea |
$0.00
|
Gantry End Channel Mounting Block
|
| $47.67/ea |
$0.00
|
|
|
|
|
|
26
|
2040 X 1NS
|
# In Diagram: 26
2040 X 1NS $222.32/ea |
$0.00
|
40 Tooth 1" wide 1/2" Bore Gear
|
| $222.32/ea |
$0.00
|
|
|
|
|
