Note
|
096-DX
|

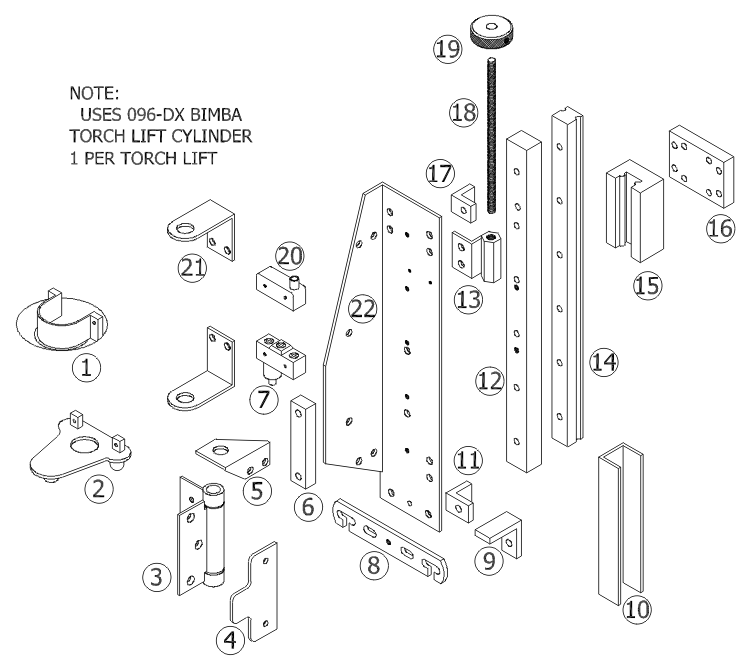

# In Diagram: Note
096-DX $148.50/ea |
$0.00
|
Torch Lift Cylinder
|
| $148.50/ea |
$0.00
|
|
|
|
|
|
1
|
PA-000001
|
# In Diagram: 1
PA-000001 $106.65/ea |
$0.00
|
Ski Cup
|
| $106.65/ea |
$0.00
|
|
|
|
|
|
2
|
PA-000002
|
# In Diagram: 2
PA-000002 $127.89/ea |
$0.00
|
Roller Cup
|
| $127.89/ea |
$0.00
|
|
|
|
|
|
3
|
N184-564
|
# In Diagram: 3
N184-564 $35.46/ea |
$0.00
|
Torch Holder Spring Hinge
|
| $35.46/ea |
$0.00
|
|
|
|
|
|
4
|
D-8H-01-000-0011A-A
|
# In Diagram: 4
D-8H-01-000-0011A-A $37.58/ea |
$0.00
|
Torch Holder Spring Hinge Lever
|
| $37.58/ea |
$0.00
|
|
|
|
|
|
5
|
D-8H-01-000-0668A-A
|
# In Diagram: 5
D-8H-01-000-0668A-A $18.30/ea |
$0.00
|
Torch Holder Lift Bumper
|
| $18.30/ea |
$0.00
|
|
|
|
|
|
6
|
D-8H-01-000-0013A-A
|
# In Diagram: 6
D-8H-01-000-0013A-A $19.70/ea |
$0.00
|
Torch Holder Spacer Block
|
| $19.70/ea |
$0.00
|
|
|
|
|
|
8
|
D-8H-01-000-0012A-A
|
# In Diagram: 8
D-8H-01-000-0012A-A $69.42/ea |
$0.00
|
Torch Holder Ski Cup Mounting Bracket
|
| $69.42/ea |
$0.00
|
|
|
|
|
|
9
|
D-8HI-00-000-0564-A
|
# In Diagram: 9
D-8HI-00-000-0564-A $22.88/ea |
$0.00
|
Torch Holder Height Adjustment Angle
|
| $22.88/ea |
$0.00
|
|
|
|
|
|
10
|
D-8H-01-000-0001A-A
|
# In Diagram: 10
D-8H-01-000-0001A-A $44.01/ea |
$0.00
|
Torch Holder Torch Tube Channel
|
| $44.01/ea |
$0.00
|
|
|
|
|
|
11
|
D-8H-01-000-0014-A
|
# In Diagram: 11
D-8H-01-000-0014-A $20.59/ea |
$0.00
|
Torch Holder Lower Linear Stop
|
| $20.59/ea |
$0.00
|
|
|
|
|
|
12
|
D-8H-01-002-0268-B
|
# In Diagram: 12
D-8H-01-002-0268-B $42.85/ea |
$0.00
|
Bar Backing Nut
|
| $42.85/ea |
$0.00
|
|
|
|
|
|
13
|
D-8H-01-006-0103A-A
|
# In Diagram: 13
D-8H-01-006-0103A-A $26.60/ea |
$0.00
|
Torch Holder Coupler Nut
|
| $26.60/ea |
$0.00
|
|
|
|
|
|
14
|
D-8F-00-000-0752-C
|
# In Diagram: 14
D-8F-00-000-0752-C $126.04/ea |
$0.00
|
Linear Slide Bar
|
| $126.04/ea |
$0.00
|
|
|
|
|
|
15
|
HGH20CAZ0C
|
# In Diagram: 15
HGH20CAZ0C $125.40/ea |
$0.00
|
Torch Holder Linear Car
|
| $125.40/ea |
$0.00
|
|
|
|
|
|
16
|
D-8H-00-002-0261-A
|
# In Diagram: 16
D-8H-00-002-0261-A $20.80/ea |
$0.00
|
Torch Holder Standard Liner Mounting Block
|
| $20.80/ea |
$0.00
|
|
|
|
|
|
17
|
D-8H01-000-0015-A
|
# In Diagram: 17
D-8H01-000-0015-A $45.76/ea |
$0.00
|
Torch Holder Upper Linear Stop
|
| $45.76/ea |
$0.00
|
|
|
|
|
|
18
|
D-8H-00-010-0707-A
|
# In Diagram: 18
D-8H-00-010-0707-A $70.82/ea |
$0.00
|
X Axis Proxy Mounting Bracket
|
| $70.82/ea |
$0.00
|
|
|
|
|
|
19
|
D-8H-01-000-0006A-A
|
# In Diagram: 19
D-8H-01-000-0006A-A $35.08/ea |
$0.00
|
Torch Holder Adjustment Knob
|
| $35.08/ea |
$0.00
|
|
|
|
|
|
20
|
E47PA2
|
# In Diagram: 20
E47PA2 $7.49/ea |
$0.00
|
Torch Safety Switch Boot
|
| $7.49/ea |
$0.00
|
|
|
|
|
|
21
|
D-8H-00-001-0014A-A
|
# In Diagram: 21
D-8H-00-001-0014A-A $26.44/ea |
$0.00
|
Upper Bimba Bracket
|
| $26.44/ea |
$0.00
|
|
|
|
|
|
22
|
D-8H-00-002-0015A-C
|
# In Diagram: 22
D-8H-00-002-0015A-C $169.18/ea |
$0.00
|
Torch Holder Main Body
|
| $169.18/ea |
$0.00
|
|
|
|
|
