1
|
AB-WC-S10-XN
|

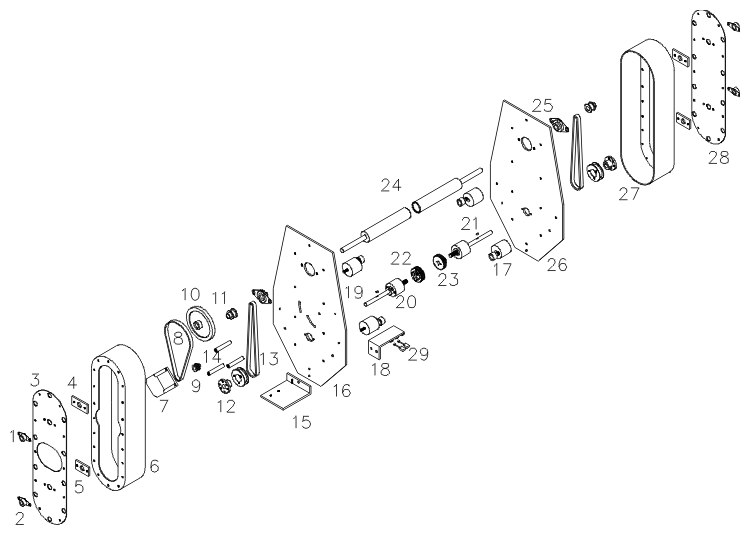

# In Diagram: 1
AB-WC-S10-XN $26.19/ea |
$0.00
|
Upper Drive Shaft End Bushing
|
| $26.19/ea |
$0.00
|
|
|
|
|
|
3
|
D-8H-05-000-0068A-C
|
# In Diagram: 3
D-8H-05-000-0068A-C $124.71/ea |
$0.00
|
X Axis Motor Side Belt Cover
|
| $124.71/ea |
$0.00
|
|
|
|
|
|
5
|
D-8H-04-000-0065A-A
|
# In Diagram: 5
D-8H-04-000-0065A-A $15.85/ea |
$0.00
|
Lower Drive Shaft End Bushing Backing Plate
|
| $15.85/ea |
$0.00
|
|
|
|
|
|
4
|
D-8H-04-000-0064A-A
|
# In Diagram: 4
D-8H-04-000-0064A-A $15.85/ea |
$0.00
|
Upper Drive Shaft End Bushing Backing Plate
|
| $15.85/ea |
$0.00
|
|
|
|
|
|
6
|
D-8H-04-001-0067A-D
|
# In Diagram: 6
D-8H-04-001-0067A-D $274.24/ea |
$0.00
|
Motor Side End Plate Casting
|
| $274.24/ea |
$0.00
|
|
|
|
|
|
8
|
225L050K
|
# In Diagram: 8
225L050K $30.56/ea |
$0.00
|
X Axis Motor Belt
|
| $30.56/ea |
$0.00
|
|
|
|
|
|
9
|
10LF050 x 1/2
|
# In Diagram: 9
10LF050 x 1/2 $47.25/ea |
$0.00
|
X Axis Motor Pulley
|
| $47.25/ea |
$0.00
|
|
|
|
|
|
10
|
40L050 x 5/8
|
# In Diagram: 10
40L050 x 5/8 $162.55/ea |
$0.00
|
Upper Drive Shaft 40 Tooth Pulley
|
| $162.55/ea |
$0.00
|
|
|
|
|
|
12
|
18LG050JA - JA x 1/2
|
# In Diagram: 12
18LG050JA - JA x 1/2 $0.00/ea |
$0.00
|
Lower Drive Shaft Pulley & Sleeve - Call for Pricing
**NEED TO ORDER BY INDIVIDUAL #'s
JA X 1/2 AND QD18L050
|
| $0.00/ea |
$0.00
|
|
|
|
|
|
13
|
270L050K
|
# In Diagram: 13
270L050K $38.08/ea |
$0.00
|
Shaft to Shaft Belt
|
| $38.08/ea |
$0.00
|
|
|
|
|
|
14
|
D-8H-02-000-0050C-A
|
# In Diagram: 14
D-8H-02-000-0050C-A $0.00/ea |
$0.00
|
X Axis Motor Standoff - Call for Pricing
|
| $0.00/ea |
$0.00
|
|
|
|
|
|
15
|
D-8H-02-000-0051A-C
|
# In Diagram: 15
D-8H-02-000-0051A-C $123.20/ea |
$0.00
|
X Axis Track Bracket
|
| $123.20/ea |
$0.00
|
|
|
|
|
|
16
|
D-8H-02-001-0054C-D
|
# In Diagram: 16
D-8H-02-001-0054C-D $347.08/ea |
$0.00
|
Standard Motor Side End Plate
|
| $347.08/ea |
$0.00
|
|
|
|
|
|
17
|
PA-000003
|
# In Diagram: 17
PA-000003 $101.20/ea |
$0.00
|
Cam Follower Assembly
|
| $101.20/ea |
$0.00
|
|
|
|
|
|
18
|
D-8H-00-010-0707-A
|
# In Diagram: 18
D-8H-00-010-0707-A $64.38/ea |
$0.00
|
X Axis Proxy Mounting Bracket
|
| $64.38/ea |
$0.00
|
|
|
|
|
|
19
|
PA-000004
|
# In Diagram: 19
PA-000004 $305.13/ea |
$0.00
|
Standard Lower Drive Shaft Assembly
|
| $305.13/ea |
$0.00
|
|
|
|
|
|
20
|
PA-000005
|
# In Diagram: 20
PA-000005 $110.53/ea |
$0.00
|
Lower Drive Shaft Bearing Housing
(Bearings Included, Shaft not included)
|
| $110.53/ea |
$0.00
|
|
|
|
|
|
21
|
69310
|
# In Diagram: 21
69310 $2.00/ea |
$0.00
|
# 3 Woodruff Key
|
| $2.00/ea |
$0.00
|
|
|
|
|
|
22
|
2040S x 1/2-Y
|
# In Diagram: 22
2040S x 1/2-Y $266.51/ea |
$0.00
|
40 Tooth 2" pinion 1/2" wide 1/2" bore nyloil Shouldered Gear
|
| $266.51/ea |
$0.00
|
|
|
|
|
|
22
|
1632S-X
|
# In Diagram: 22
1632S-X $217.52/ea |
$0.00
|
32 Tooth 2" Pinion 1/2" wide 1/2" bore fiber/nyloil Shouldered Gear
|
| $217.52/ea |
$0.00
|
|
|
|
|
|
23
|
1632NS-X
|
# In Diagram: 23
1632NS-X $119.91/ea |
$0.00
|
32 Tooth 2" Pinion 1/2" wide 1/2" bore fiber/nyloil Nonshouldered Gear
|
| $119.91/ea |
$0.00
|
|
|
|
|
|
23
|
2040NS x 1/2-X
|
# In Diagram: 23
2040NS x 1/2-X $168.78/ea |
$0.00
|
40 Tooth 2" pinion 1/2" wide 1/2" bore nyloil Nonshouldered Gear
|
| $168.78/ea |
$0.00
|
|
|
|
|
|
24
|
PA-000006
|
# In Diagram: 24
PA-000006 $173.31/ea |
$0.00
|
5 ft Upper Drive Shaft
|
| $173.31/ea |
$0.00
|
|
|
|
|
|
25
|
6910
|
# In Diagram: 25
6910 $73.00/ea |
$0.00
|
Upper Drive Shaft Nice Bearing
|
| $73.00/ea |
$0.00
|
|
|
|
|
|
26
|
D-8H-02-000-0054C-D
|
# In Diagram: 26
D-8H-02-000-0054C-D $315.52/ea |
$0.00
|
Standard Nonmotor Side End Plate
|
| $315.52/ea |
$0.00
|
|
|
|
|
|
27
|
D-8H-04-000-0066A-D
|
# In Diagram: 27
D-8H-04-000-0066A-D $282.24/ea |
$0.00
|
Nonmotor Side End Plate Casting
|
| $282.24/ea |
$0.00
|
|
|
|
|
|
28
|
D-8H-04-000-0063A-C
|
# In Diagram: 28
D-8H-04-000-0063A-C $124.71/ea |
$0.00
|
X Axis Nonmotor Side Belt Cover
|
| $124.71/ea |
$0.00
|
|
|
|
|
|
29
|
EZ-18T
|
# In Diagram: 29
EZ-18T $140.00/ea |
$0.00
|
X Axis Proxy Switch
|
| $140.00/ea |
$0.00
|
|
|
|
|
|
29
|
E47BMS42
|
# In Diagram: 29
E47BMS42 $64.77/ea |
$0.00
|
Roller Switch
|
| $64.77/ea |
$0.00
|
|
|
|
|
