NOTE
|
D-2DM-05-015-0857-A
|

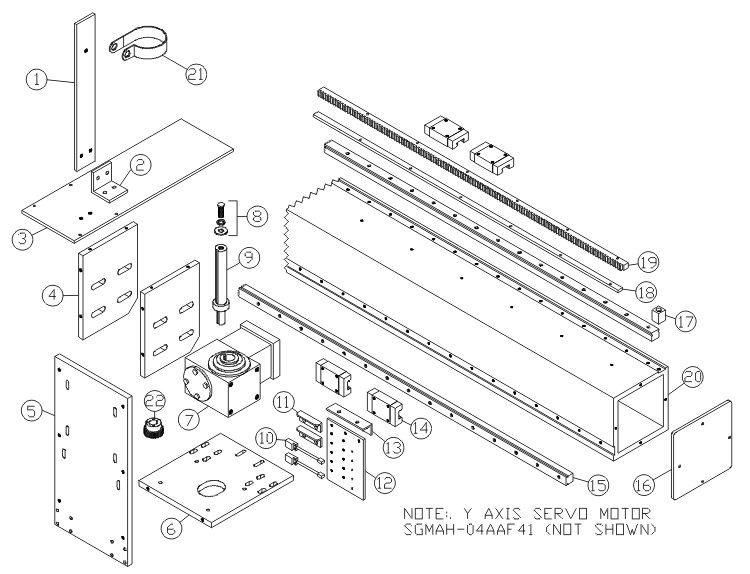

# In Diagram: NOTE
D-2DM-05-015-0857-A $71.25/ea |
$0.00
|
Carriage Lead Support Bracket
|
| $71.25/ea |
$0.00
|
|
|
|
|
|
1
|
SGMAH-04AAF41
|
# In Diagram: 1
SGMAH-04AAF41 $3,457.58/ea |
$0.00
|
High Speed Carriage Motor
|
| $3,457.58/ea |
$0.00
|
|
|
|
|
|
2
|
D-2DM-05-015-0856-A
|
# In Diagram: 2
D-2DM-05-015-0856-A $32.26/ea |
$0.00
|
Carriage Lead Support Bracket Mounting Angle
|
| $32.26/ea |
$0.00
|
|
|
|
|
|
3
|
D-2DM-04-000-0024-A
|
# In Diagram: 3
D-2DM-04-000-0024-A $133.74/ea |
$0.00
|
Carriage Track Bracket
|
| $133.74/ea |
$0.00
|
|
|
|
|
|
4
|
D-2DM-04-00-0009-A
|
# In Diagram: 4
D-2DM-04-00-0009-A $147.87/ea |
$0.00
|
Y Axis Gear Box Mounting Plate
|
| $147.87/ea |
$0.00
|
|
|
|
|
|
5
|
D-2DM-04-000-0010-A
|
# In Diagram: 5
D-2DM-04-000-0010-A $293.22/ea |
$0.00
|
Carriage Sub Plate
|
| $293.22/ea |
$0.00
|
|
|
|
|
|
7
|
RG15-010-AH04
|
# In Diagram: 7
RG15-010-AH04 $1,391.36/ea |
$0.00
|
Y Axis Gear Box
|
| $1,391.36/ea |
$0.00
|
|
|
|
|
|
8
|
PA-000034
|
# In Diagram: 8
PA-000034 $6.12/ea |
$0.00
|
Drive Shaft Hardware Set
|
| $6.12/ea |
$0.00
|
|
|
|
|
|
9
|
D-2F-02-011-0375-DM
|
# In Diagram: 9
D-2F-02-011-0375-DM $209.06/ea |
$0.00
|
Y Axis Gear Box Drive Shaft
|
| $209.06/ea |
$0.00
|
|
|
|
|
|
10
|
EZ-18T (replacement E52-18RU04-C)
|
# In Diagram: 10
EZ-18T (replacement E52-18RU04-C) $154.00/ea |
$0.00
|
Y Axis Proxy Switch
|
| $154.00/ea |
$0.00
|
|
|
|
|
|
11
|
D-2DM-01-011-0702-A
|
# In Diagram: 11
D-2DM-01-011-0702-A $63.86/ea |
$0.00
|
Proxy Mounting Angle
|
| $63.86/ea |
$0.00
|
|
|
|
|
|
12
|
D-2DM-01-011-0701-A
|
# In Diagram: 12
D-2DM-01-011-0701-A $106.19/ea |
$0.00
|
Proxy Mounting Bracket
|
| $106.19/ea |
$0.00
|
|
|
|
|
|
13
|
PA-000037
|
# In Diagram: 13
PA-000037 $18.34/ea |
$0.00
|
Proxy Mounting Bracket Angle
|
| $18.34/ea |
$0.00
|
|
|
|
|
|
14
|
HGH20CAZ0C
|
# In Diagram: 14
HGH20CAZ0C $125.40/ea |
$0.00
|
Torch Holder Linear Car
|
| $125.40/ea |
$0.00
|
|
|
|
|
|
15
|
D-2DM-10-010-0014-C
|
# In Diagram: 15
D-2DM-10-010-0014-C $89.83/ea |
$0.00
|
Linear Rail
|
| $89.83/ea |
$0.00
|
|
|
|
|
|
16
|
D-2DM-00-004-0724-B
|
# In Diagram: 16
D-2DM-00-004-0724-B $97.77/ea |
$0.00
|
Gantry Body End Caps
|
| $97.77/ea |
$0.00
|
|
|
|
|
|
17
|
D-2DM-00-012-0188-A
|
# In Diagram: 17
D-2DM-00-012-0188-A $21.97/ea |
$0.00
|
Y Axis Stop
|
| $21.97/ea |
$0.00
|
|
|
|
|
|
18
|
D-2DM-05-000-0057-A
|
# In Diagram: 18
D-2DM-05-000-0057-A $186.11/ea |
$0.00
|
Gear Rack Spacer
|
| $186.11/ea |
$0.00
|
|
|
|
|
|
19
|
D-2DM-05-000-0054-A
|
# In Diagram: 19
D-2DM-05-000-0054-A $487.85/ea |
$0.00
|
Y Axis Gear Rack
|
| $487.85/ea |
$0.00
|
|
|
|
|
|
20
|
D-2DM-05-000-0053-D
|
# In Diagram: 20
D-2DM-05-000-0053-D $6,383.17/ea |
$0.00
|
Gantry Body
|
| $6,383.17/ea |
$0.00
|
|
|
|
|
|
21
|
PA-000036
|
# In Diagram: 21
PA-000036 $8.80/ea |
$0.00
|
3 in. Loom Clamp
|
| $8.80/ea |
$0.00
|
|
|
|
|
|
22
|
2030EY x 1/2
|
# In Diagram: 22
2030EY x 1/2 $271.05/ea |
$0.00
|
30 Tooth 1/2" wide 5/8" Bore Gear
|
| $271.05/ea |
$0.00
|
|
|
|
|
