1
|
D-R8H-00-000-0042-A
|

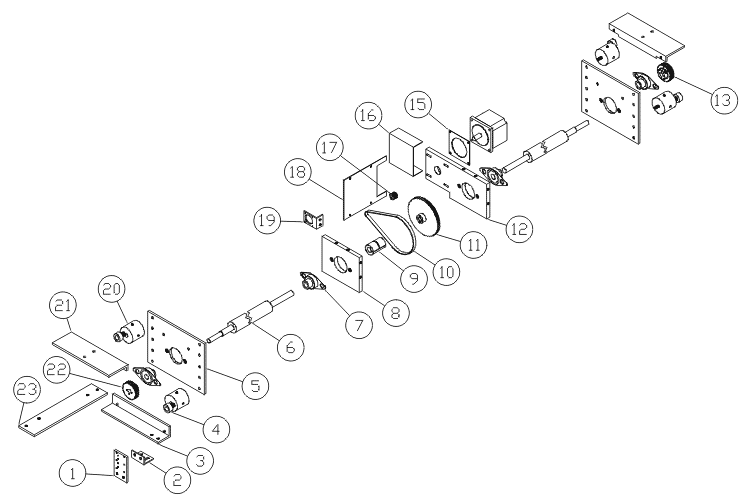

# In Diagram: 1
D-R8H-00-000-0042-A $42.78/ea |
$0.00
|
Proxy Switch Mounting Plate
|
| $42.78/ea |
$0.00
|
|
|
|
|
|
2
|
D-R8H-00-000-0043-A
|
# In Diagram: 2
D-R8H-00-000-0043-A $18.34/ea |
$0.00
|
Proxy Switch Bracket
|
| $18.34/ea |
$0.00
|
|
|
|
|
|
3
|
D-R8H-00-000-0041-A
|
# In Diagram: 3
D-R8H-00-000-0041-A $55.00/ea |
$0.00
|
Stand Alone Nylatrac Mounting Angle
|
| $55.00/ea |
$0.00
|
|
|
|
|
|
5
|
D-R8H-00-000-0013-A
|
# In Diagram: 5
D-R8H-00-000-0013-A $103.88/ea |
$0.00
|
Gantry End Plate
|
| $103.88/ea |
$0.00
|
|
|
|
|
|
6
|
D-R8H-00-002-0100-A
|
# In Diagram: 6
D-R8H-00-002-0100-A $183.32/ea |
$0.00
|
Stand Alone X Axis Drive Shaft
|
| $183.32/ea |
$0.00
|
|
|
|
|
|
7
|
6910
|
# In Diagram: 7
6910 $80.30/ea |
$0.00
|
Upper Drive Shaft Nice Bearing
|
| $80.30/ea |
$0.00
|
|
|
|
|
|
8
|
D-R8H-00-000-0034-B
|
# In Diagram: 8
D-R8H-00-000-0034-B $67.22/ea |
$0.00
|
Inner Bearing Mounting Plate
|
| $67.22/ea |
$0.00
|
|
|
|
|
|
9
|
ACC 5/8 - 5/8
|
# In Diagram: 9
ACC 5/8 - 5/8 $64.77/ea |
$0.00
|
Split Coupler
|
| $64.77/ea |
$0.00
|
|
|
|
|
|
10
|
188XL037
|
# In Diagram: 10
188XL037 $27.95/ea |
$0.00
|
X Axis Belt
|
| $27.95/ea |
$0.00
|
|
|
|
|
|
11
|
72XL037 x 5/8
|
# In Diagram: 11
72XL037 x 5/8 $70.52/ea |
$0.00
|
Stand Alone Drive Shaft Pulley
|
| $70.52/ea |
$0.00
|
|
|
|
|
|
12
|
D-R8H-00-000-0030-B
|
# In Diagram: 12
D-R8H-00-000-0030-B $103.88/ea |
$0.00
|
X Axis Motor Mounting Plate
|
| $103.88/ea |
$0.00
|
|
|
|
|
|
13
|
2040S x 1/2-X
|
# In Diagram: 13
2040S x 1/2-X $293.16/ea |
$0.00
|
40 Tooth 2" pinion 1/2" wide 1/2" bore nyloil Shouldered Gear
|
| $293.16/ea |
$0.00
|
|
|
|
|
|
15
|
PA-000048
|
# In Diagram: 15
PA-000048 $33.62/ea |
$0.00
|
Motor Spacer Plate
|
| $33.62/ea |
$0.00
|
|
|
|
|
|
16
|
PA-000052
|
# In Diagram: 16
PA-000052 $18.34/ea |
$0.00
|
Outer Belt Cover
|
| $18.34/ea |
$0.00
|
|
|
|
|
|
17
|
10XL037 x 3/8
|
# In Diagram: 17
10XL037 x 3/8 $88.74/ea |
$0.00
|
HVAC Carriage Motor Pulley
|
| $88.74/ea |
$0.00
|
|
|
|
|
|
18
|
D-R8H-00-000-0040-A
|
# In Diagram: 18
D-R8H-00-000-0040-A $20.78/ea |
$0.00
|
Belt Cover
|
| $20.78/ea |
$0.00
|
|
|
|
|
|
20
|
PA-000051
|
# In Diagram: 20
PA-000051 $101.20/ea |
$0.00
|
Stand Alone Cam Follower Assembly
|
| $101.20/ea |
$0.00
|
|
|
|
|
|
21
|
D-R8H-00-000-0044-A
|
# In Diagram: 21
D-R8H-00-000-0044-A $55.00/ea |
$0.00
|
Cam Follower Cover
|
| $55.00/ea |
$0.00
|
|
|
|
|
|
22
|
2040NS x 1/2-X
|
# In Diagram: 22
2040NS x 1/2-X $185.66/ea |
$0.00
|
40 Tooth 2" pinion 1/2" wide 1/2" bore nyloil Nonshouldered Gear
|
| $185.66/ea |
$0.00
|
|
|
|
|
|
23
|
D-R8H-00-000-0055-C
|
# In Diagram: 23
D-R8H-00-000-0055-C $55.00/ea |
$0.00
|
Stand Alone Track Mounting Bar
|
| $55.00/ea |
$0.00
|
|
|
|
|
