1
|
D-8H-04-000-0065A-A
|

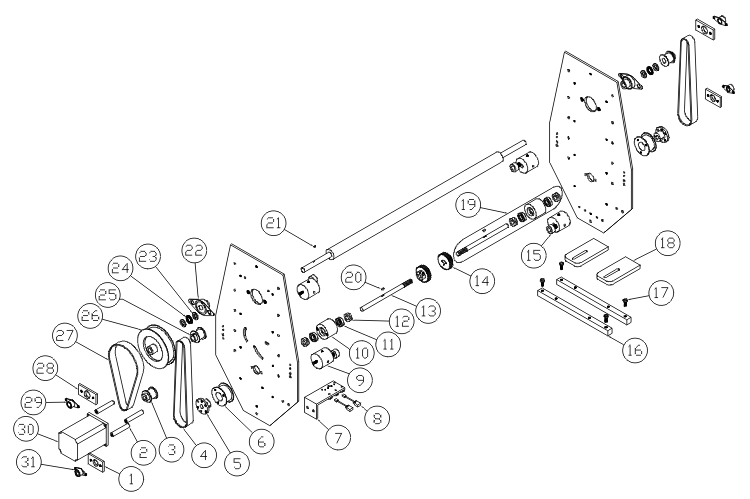

# In Diagram: 1
D-8H-04-000-0065A-A $15.85/ea |
$0.00
|
Lower Drive Shaft End Bushing Backing Plate
|
| $15.85/ea |
$0.00
|
|
|
|
|
|
2
|
D-8H-02-000-0050C-A
|
# In Diagram: 2
D-8H-02-000-0050C-A $0.00/ea |
$0.00
|
X Axis Motor Standoff - CALL FOR PRICING
|
| $0.00/ea |
$0.00
|
|
|
|
|
|
3
|
10L100 x 16mm
|
# In Diagram: 3
10L100 x 16mm $46.66/ea |
$0.00
|
Gantry Pulley
|
| $46.66/ea |
$0.00
|
|
|
|
|
|
4
|
270L100K
|
# In Diagram: 4
270L100K $72.44/ea |
$0.00
|
X Axis Drive Shaft Belt
|
| $72.44/ea |
$0.00
|
|
|
|
|
|
5
|
JA x 1/2
|
# In Diagram: 5
JA x 1/2 $39.09/ea |
$0.00
|
1/2 in. Taper Lock Bushing
|
| $39.09/ea |
$0.00
|
|
|
|
|
|
6
|
18L100JA
|
# In Diagram: 6
18L100JA $39.07/ea |
$0.00
|
Taper Lock Pulley
|
| $39.07/ea |
$0.00
|
|
|
|
|
|
7
|
D-8H-00-010-0707-A
|
# In Diagram: 7
D-8H-00-010-0707-A $64.38/ea |
$0.00
|
X Axis Proxy Mounting Bracket
|
| $64.38/ea |
$0.00
|
|
|
|
|
|
8
|
EZ-18T
|
# In Diagram: 8
EZ-18T $140.00/ea |
$0.00
|
X Axis Proxy Switch
|
| $140.00/ea |
$0.00
|
|
|
|
|
|
9
|
PA-000026
|
# In Diagram: 9
PA-000026 $101.20/ea |
$0.00
|
Cam Follower Assembly
|
| $101.20/ea |
$0.00
|
|
|
|
|
|
10
|
PA-000027
|
# In Diagram: 10
PA-000027 $49.07/ea |
$0.00
|
Lower Drive Shaft Bearing Housing
|
| $49.07/ea |
$0.00
|
|
|
|
|
|
11
|
77R8
|
# In Diagram: 11
77R8 $16.96/ea |
$0.00
|
Lower Drive Shaft Bearing
|
| $16.96/ea |
$0.00
|
|
|
|
|
|
13
|
D-8H-02-000-0055A-A
|
# In Diagram: 13
D-8H-02-000-0055A-A $54.13/ea |
$0.00
|
Lower Drive Shaft
|
| $54.13/ea |
$0.00
|
|
|
|
|
|
13
|
S25FY9-PC50031
|
# In Diagram: 13
S25FY9-PC50031 $47.80/ea |
$0.00
|
Fairloc Clamp Collar
|
| $47.80/ea |
$0.00
|
|
|
|
|
|
14
|
2040NS x 1/2-X
|
# In Diagram: 14
2040NS x 1/2-X $168.78/ea |
$0.00
|
40 Tooth 2" pinion 1/2" wide 1/2" bore nyloil Nonshouldered Gear
|
| $168.78/ea |
$0.00
|
|
|
|
|
|
16
|
D-8F-00-000-0666-A
|
# In Diagram: 16
D-8F-00-000-0666-A $36.06/ea |
$0.00
|
Gantry Guide Mounting Bar
|
| $36.06/ea |
$0.00
|
|
|
|
|
|
17
|
CARRIAGEBEARINGASSY
|
# In Diagram: 17
CARRIAGEBEARINGASSY $37.02/ea |
$0.00
|
Carriage Bearing Assembly (was 77R4A)
|
| $37.02/ea |
$0.00
|
|
|
|
|
|
18
|
D-8F-00-000-0271-A
|
# In Diagram: 18
D-8F-00-000-0271-A $40.21/ea |
$0.00
|
Gantry Guide Bearing Mount
|
| $40.21/ea |
$0.00
|
|
|
|
|
|
19
|
PA-000028
|
# In Diagram: 19
PA-000028 $305.13/ea |
$0.00
|
Lower Drive Shaft Assembly
|
| $305.13/ea |
$0.00
|
|
|
|
|
|
20
|
69310
|
# In Diagram: 20
69310 $2.00/ea |
$0.00
|
# 3 Woodruff Key
|
| $2.00/ea |
$0.00
|
|
|
|
|
|
21
|
69314
|
# In Diagram: 21
69314 $2.22/ea |
$0.00
|
# 61 Woodruff Key
|
| $2.22/ea |
$0.00
|
|
|
|
|
|
22
|
6910
|
# In Diagram: 22
6910 $73.00/ea |
$0.00
|
Upper Drive Shaft Nice Bearing
|
| $73.00/ea |
$0.00
|
|
|
|
|
|
23
|
TRC-1018
|
# In Diagram: 23
TRC-1018 $6.00/ea |
$0.00
|
Thrust Washer
|
| $6.00/ea |
$0.00
|
|
|
|
|
|
24
|
TRA-1018
|
# In Diagram: 24
TRA-1018 $2.50/ea |
$0.00
|
Gantry Needle Bearing
|
| $2.50/ea |
$0.00
|
|
|
|
|
|
25
|
10L100 x 5/8
|
# In Diagram: 25
10L100 x 5/8 $46.66/ea |
$0.00
|
Upper Drive Shaft 10 Tooth Pulley
|
| $46.66/ea |
$0.00
|
|
|
|
|
|
26
|
40L100 x 5/8
|
# In Diagram: 26
40L100 x 5/8 $184.62/ea |
$0.00
|
Upper Drive Shaft 40 Tooth Pulley
|
| $184.62/ea |
$0.00
|
|
|
|
|
|
27
|
225L100K
|
# In Diagram: 27
225L100K $52.76/ea |
$0.00
|
X Axis Motor Belt
|
| $52.76/ea |
$0.00
|
|
|
|
|
|
28
|
D-8H-04-000-0064A-A
|
# In Diagram: 28
D-8H-04-000-0064A-A $15.85/ea |
$0.00
|
Upper Drive Shaft End Bushing Backing Plate
|
| $15.85/ea |
$0.00
|
|
|
|
|
|
29
|
AB-WC-S10-XN
|
# In Diagram: 29
AB-WC-S10-XN $26.19/ea |
$0.00
|
Upper Drive Shaft End Bushing
|
| $26.19/ea |
$0.00
|
|
|
|
|
|
30
|
SGMAH-08AAF41
|
# In Diagram: 30
SGMAH-08AAF41 $4,191.75/ea |
$0.00
|
X Axis Yaskawa Motor
|
| $4,191.75/ea |
$0.00
|
|
|
|
|
