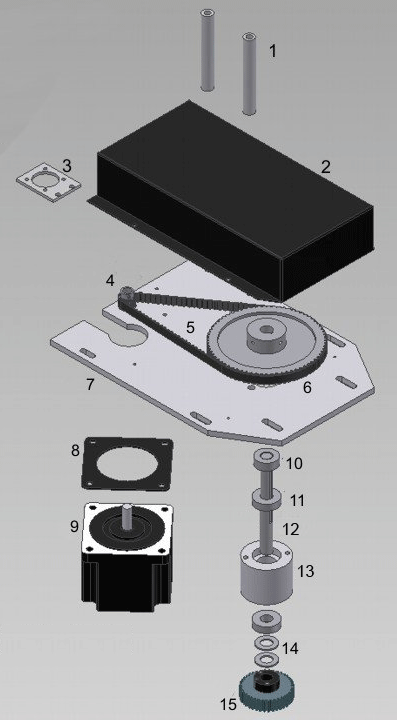

1
|
04-0038-A
|
# In Diagram: 1
04-0038-A $6.33/ea |
$0.00
|
NylaTrack Mounting Standoffs
|
| $6.33/ea |
$0.00
|
|
|
|
|
|
2
|
00-0101-A
|
# In Diagram: 2
00-0101-A $176.56/ea |
$0.00
|
Y Axis Belt Cover
|
| $176.56/ea |
$0.00
|
|
|
|
|
|
3
|
00-0038-A
|
# In Diagram: 3
00-0038-A $49.76/ea |
$0.00
|
Y Axis Motor Cable Bracket
|
| $49.76/ea |
$0.00
|
|
|
|
|
|
4
|
10XL037 x 3/8
|
# In Diagram: 4
10XL037 x 3/8 $80.67/ea |
$0.00
|
HVAC Carriage Motor Pulley
|
| $80.67/ea |
$0.00
|
|
|
|
|
|
5
|
210XL037K
|
# In Diagram: 5
210XL037K $21.20/ea |
$0.00
|
Carriage Belt
|
| $21.20/ea |
$0.00
|
|
|
|
|
|
6
|
72XL037 x 1/2
|
# In Diagram: 6
72XL037 x 1/2 $73.75/ea |
$0.00
|
Drive Shaft Pulley
|
| $73.75/ea |
$0.00
|
|
|
|
|
|
7
|
00-0020-B
|
# In Diagram: 7
00-0020-B $168.18/ea |
$0.00
|
Y Axis Carriage Motor Plate
|
| $168.18/ea |
$0.00
|
|
|
|
|
|
8
|
00-1000-A
|
# In Diagram: 8
00-1000-A $37.81/ea |
$0.00
|
Motor Spacer
|
| $37.81/ea |
$0.00
|
|
|
|
|
|
9
|
HT34-474-001
|
# In Diagram: 9
HT34-474-001 $491.25/ea |
$0.00
|
Stepper Motor - STEP MTR ASSY
|
| $491.25/ea |
$0.00
|
|
|
|
|
|
10
|
S25FY9-PC50031
|
# In Diagram: 10
S25FY9-PC50031 $47.80/ea |
$0.00
|
Fairloc Clamp Collar
|
| $47.80/ea |
$0.00
|
|
|
|
|
|
11
|
77R8
|
# In Diagram: 11
77R8 $16.96/ea |
$0.00
|
Lower Drive Shaft Bearing
|
| $16.96/ea |
$0.00
|
|
|
|
|
|
12
|
00-0018-A
|
# In Diagram: 12
00-0018-A $57.19/ea |
$0.00
|
Y Axis Drive Shaft
|
| $57.19/ea |
$0.00
|
|
|
|
|
|
13
|
D-8H-00-002-0300-A
|
# In Diagram: 13
D-8H-00-002-0300-A $49.07/ea |
$0.00
|
Bearing Housing
|
| $49.07/ea |
$0.00
|
|
|
|
|
|
14
|
TRB-815
|
# In Diagram: 14
TRB-815 $8.40/ea |
$0.00
|
Thrust Washer
|
| $8.40/ea |
$0.00
|
|
|
|
|
|
15
|
2040 x 1/2 Nonshouldered
|
# In Diagram: 15
2040 x 1/2 Nonshouldered $168.78/ea |
$0.00
|
40 Tooth 2" pinion 1/2" wide 1/2" bore nyloil Nonshouldered Gear
|
| $168.78/ea |
$0.00
|
|
|
|
|
