1
|
D-8HI-00-001-0566-A
|

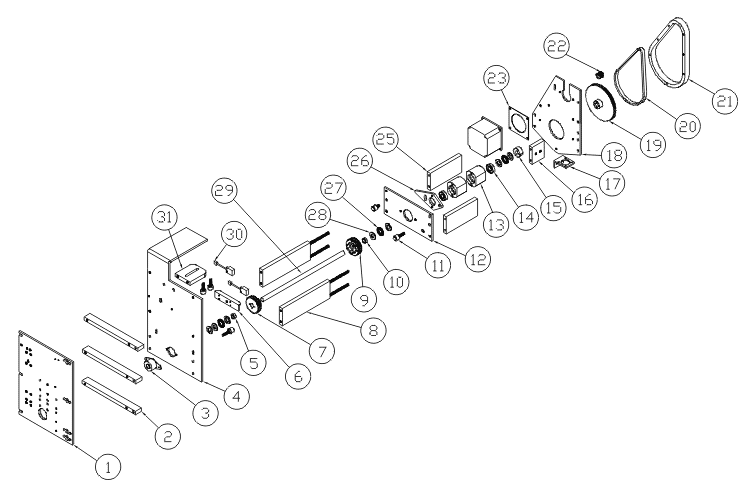

# In Diagram: 1
D-8HI-00-001-0566-A $241.98/ea |
$0.00
|
Carriage Mounting Plate
|
| $241.98/ea |
$0.00
|
|
|
|
|
|
2
|
D-8HI-00-000-0568-A
|
# In Diagram: 2
D-8HI-00-000-0568-A $74.31/ea |
$0.00
|
Carriage Torch Holder Mounting Bar
|
| $74.31/ea |
$0.00
|
|
|
|
|
|
4
|
PA-000047
|
# In Diagram: 4
PA-000047 $241.98/ea |
$0.00
|
Torch Side Mounting Plate
|
| $241.98/ea |
$0.00
|
|
|
|
|
|
5
|
AA607-01
|
# In Diagram: 5
AA607-01 $2.04/ea |
$0.00
|
1/2" Brass Spacer
|
| $2.04/ea |
$0.00
|
|
|
|
|
|
6
|
D-8H-00-011-0710-A
|
# In Diagram: 6
D-8H-00-011-0710-A $26.31/ea |
$0.00
|
Y Axis Proxy Switch Mounting Angle
|
| $26.31/ea |
$0.00
|
|
|
|
|
|
7
|
2040 x 1/2 Nonshouldered
|
# In Diagram: 7
2040 x 1/2 Nonshouldered $168.78/ea |
$0.00
|
40 Tooth 2" pinion 1/2" wide 1/2" bore nyloil Nonshouldered Gear
|
| $168.78/ea |
$0.00
|
|
|
|
|
|
8
|
D-8F-00-001-0017J-C
|
# In Diagram: 8
D-8F-00-001-0017J-C $41.48/ea |
$0.00
|
HVAC Lower Carriage Tie Bar
|
| $41.48/ea |
$0.00
|
|
|
|
|
|
9
|
2040S x 1/2-Y
|
# In Diagram: 9
2040S x 1/2-Y $266.51/ea |
$0.00
|
40 Tooth 2" pinion 1/2" wide 1/2" bore nyloil Shouldered Gear
|
| $266.51/ea |
$0.00
|
|
|
|
|
|
10
|
AA607-06
|
# In Diagram: 10
AA607-06 $3.87/ea |
$0.00
|
1/4" Brass Spacer
|
| $3.87/ea |
$0.00
|
|
|
|
|
|
11
|
CARRIAGEBEARINGASSY
|
# In Diagram: 11
CARRIAGEBEARINGASSY $37.02/ea |
$0.00
|
Carriage Bearing Assembly (was 77R4A)
|
| $37.02/ea |
$0.00
|
|
|
|
|
|
12
|
D-R8H-00-000-0014-B
|
# In Diagram: 12
D-R8H-00-000-0014-B $64.44/ea |
$0.00
|
Bearing Mounting Plate
|
| $64.44/ea |
$0.00
|
|
|
|
|
|
13
|
D-8F-00-004-0037J-C
|
# In Diagram: 13
D-8F-00-004-0037J-C $52.33/ea |
$0.00
|
Bearing Housing
|
| $52.33/ea |
$0.00
|
|
|
|
|
|
14
|
77R8
|
# In Diagram: 14
77R8 $16.96/ea |
$0.00
|
Lower Drive Shaft Bearing
|
| $16.96/ea |
$0.00
|
|
|
|
|
|
15
|
S25FY9-PC50031
|
# In Diagram: 15
S25FY9-PC50031 $47.80/ea |
$0.00
|
Fairloc Clamp Collar
|
| $47.80/ea |
$0.00
|
|
|
|
|
|
16
|
D-8H-00-016-0115-A
|
# In Diagram: 16
D-8H-00-016-0115-A $42.22/ea |
$0.00
|
Motor Cable Mounting Bar
|
| $42.22/ea |
$0.00
|
|
|
|
|
|
17
|
D-8H-00-001-0020A-A
|
# In Diagram: 17
D-8H-00-001-0020A-A $24.04/ea |
$0.00
|
Motor Cable Bracket
|
| $24.04/ea |
$0.00
|
|
|
|
|
|
18
|
D-8H-00-002-0029A-C
|
# In Diagram: 18
D-8H-00-002-0029A-C $116.91/ea |
$0.00
|
Carriage Motor Plate
|
| $116.91/ea |
$0.00
|
|
|
|
|
|
19
|
72XL037 x 1/2
|
# In Diagram: 19
72XL037 x 1/2 $73.75/ea |
$0.00
|
Drive Shaft Pulley
|
| $73.75/ea |
$0.00
|
|
|
|
|
|
20
|
210XL037K
|
# In Diagram: 20
210XL037K $21.20/ea |
$0.00
|
Carriage Belt
|
| $21.20/ea |
$0.00
|
|
|
|
|
|
21
|
D-8H-05-000-0074-A
|
# In Diagram: 21
D-8H-05-000-0074-A $58.44/ea |
$0.00
|
Carriage Belt Cover
|
| $58.44/ea |
$0.00
|
|
|
|
|
|
22
|
10XL037 x 3/8
|
# In Diagram: 22
10XL037 x 3/8 $80.67/ea |
$0.00
|
HVAC Carriage Motor Pulley
|
| $80.67/ea |
$0.00
|
|
|
|
|
|
23
|
PA-000048
|
# In Diagram: 23
PA-000048 $30.56/ea |
$0.00
|
Motor Spacer Plate
|
| $30.56/ea |
$0.00
|
|
|
|
|
|
25
|
D-R8H-00-000-0015-C
|
# In Diagram: 25
D-R8H-00-000-0015-C $27.78/ea |
$0.00
|
Carriage Tie Bar Extension
|
| $27.78/ea |
$0.00
|
|
|
|
|
|
26
|
D-8H-00-002-0026A-A
|
# In Diagram: 26
D-8H-00-002-0026A-A $60.19/ea |
$0.00
|
Carriage Kite
|
| $60.19/ea |
$0.00
|
|
|
|
|
|
27
|
TC 815 S 210
|
# In Diagram: 27
TC 815 S 210 $11.60/ea |
$0.00
|
Needle Bearing
|
| $11.60/ea |
$0.00
|
|
|
|
|
|
28
|
TRB-815
|
# In Diagram: 28
TRB-815 $8.40/ea |
$0.00
|
Thrust Washer
|
| $8.40/ea |
$0.00
|
|
|
|
|
|
29
|
D-8H-00-001-0019-B
|
# In Diagram: 29
D-8H-00-001-0019-B $66.11/ea |
$0.00
|
Carriage Drive Shaft
|
| $66.11/ea |
$0.00
|
|
|
|
|
|
30
|
E52-18RU04-C
|
# In Diagram: 30
E52-18RU04-C $384.09/ea |
$0.00
|
Y Axis Proxy Switch
|
| $384.09/ea |
$0.00
|
|
|
|
|
|
31
|
D-8H-00-016-0114-A
|
# In Diagram: 31
D-8H-00-016-0114-A $57.77/ea |
$0.00
|
Guide Bearing Mounting Bar
|
| $57.77/ea |
$0.00
|
|
|
|
|
